3.5kw-12000BTU DC48V

SOLAR OFF GRID AIR CONDITIONER

If your power source is native 48VDC as part of a telecom or off-grid solar application, Superen's 48v all-DC air conditioners are your most efficient cooling choice. DC48V air conditioners can substantially reduce power supply/generation costs and battery requirements. An all-DC system means you get the advantage of extreme high efficiency without the need for inverters. The 48V air conditioner is designed to conserve power, and operate reliably for many years without maintenance.

Contact Us

Rob

Mobile: 0409 125 315

Email: rob@superen.com.au

Product Details

If your power source is native 48VDC as part of a telecom or off-grid solar application, SuperEn DC4812VRFS all-DC air conditioners are your most efficient cooling choice. DC48V air conditioners can substantially reduce power supply/generation costs and battery requirements. An all-DC system means you get the advantage of extreme high efficiency without the need for inverters.

The 48V air conditioner is designed to conserve power, and operate reliably for many years without maintenance.

100% DC Inverter = No Wasted Energy

High efficiency (Brushless DC) permanent magnet motor.

High efficiency brushless inverter DC permanent magnet compressors.

DC Brushless indoor and outdoor fan motors.

100% DC operation

Variable frequency drive 25hz - 120hz (variable speed)

Capacity dynamically sized 3071-12966 BTU per hour as needed.

48V DC Power, no inverter required, no AC power required.

Rotary Compressor provides high efficiency operation and slow start.

Deep cycle batteries can be used as an energy bank for overnight operations.

Innovative control logic saves energy by matching cooling capacity to demand.

Uses min. 4pcs standard 12v (or 8pcs 6v) deep cycle solar batteries.

Batteries are configured in series/parallel for 48 volt operation.

Uses 4 or more standard 310w solar panels.

Works with external standard solar charge controller.

Solar panel and battery requirements will vary based on application and local sunlight conditions.

Quiet operation.

Minimum energy loss, SEER>22

Complete System Diagram

Depending on conditions, the entry level set up can operate up to 10 hours per day using 4~6pcs 310w panels. A configuration of 6~8 pcs panels can provide up to 15 hours of daily operation, with 8~12 pcs panels yielding up to 20~24 hours. The batteries and charge controller must be sized appropriately.

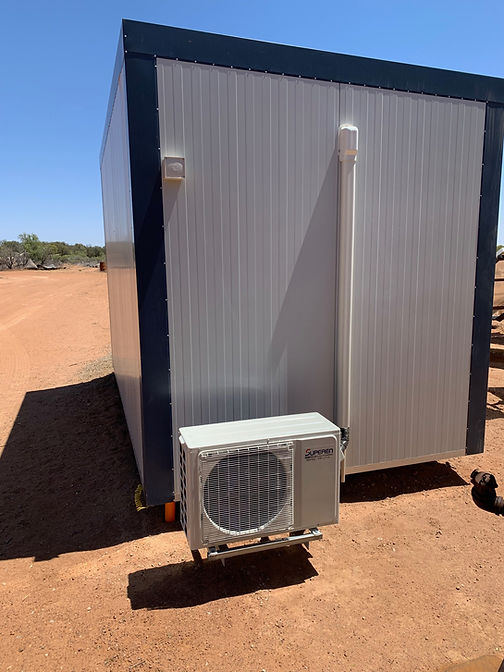

Various Applications

It works with DC Variable Frequency Technology

Air Conditioner Technology Background

It starts with the compressor which uses 95% of the power consumed by an air conditioner. In all ultra-high efficiency AC-powered mini-split units, household electricity enters the air conditioner and passes through a rectifier, a component that converts the incoming Alternating Current (AC) to Direct Current (DC). The DC current passes through a frequency driver which applies power to the motor. The frequency of the power determines the output of the motor, which can be digitally managed to precisely control the motors speed. Because DC power can be used more efficiently, all of the highest efficiency AC-powered heat pumps and air conditioners on the market use DC powered compressors.

In an off-grid solar configuration where an AC-powered air conditioner is running from inverted solar power, the power is actually being converted twice. First, the native DC power from solar panels is inverted to AC by the inverter, and then the power is immediately converted back to DC after entering the air conditioner. Sounds wasteful? It is, requiring more solar panels and more batteries as a result.

A key difference with our system – the DC4812VRF unit skips all of these conversions and uses the DC power directly without conversion loss.

The 48V DC Powered Solar Air Conditioner System

DC Powered Indoor unit

One reason that a DC Air Conditioner makes the best use of solar power is because there is no loss associated with converting DC power from solar panels into AC power to run a standard air conditioner.

A key difference with our system – the DC4812VRF unit skips all of these conversions and uses the DC power directly without conversion loss.

The 48V DC Powered Solar Air Conditioner System

100% DC Powered Outdoor unit

Using standard solar panels which produce native DC power, the 48V DC air conditioners avoid the inefficient addition of an "inverter" that converts solar DC current into AC current.

A key difference with our system – the DC4812VRF unit skips all of these conversions and uses the DC power directly without conversion loss.

The 48V DC Powered Solar Air Conditioner System

DC Brushless fan motor

We use 48V DC brushless fan motors for both indoor and outdoor units. DC brushless fan motors can greatly reduce energy consumption, and run with super low noise. Plus, the use of a brushless permanent magnet motor driver provides a variable frequency drive that allows the system to dynamically adjust its capacity based on conditions

A key difference with our system – the DC4812VRF unit skips all of these conversions and uses the DC power directly without conversion loss.

The 48V DC Powered Solar Air Conditioner System

Solar Panel

We suggest you to connect 4 or 6 pcs 275W-330W solar panels to drive each solar air conditioner. Both mono-crystalline and poly-crystalline solar panels can be accepted.

A key difference with our system – the DC4812VRF unit skips all of these conversions and uses the DC power directly without conversion loss.

The 48V DC Powered Solar Air Conditioner System

MPPT Solar Charge Controller

A Solar charge controller protects the whole system and provides stable power supply.

A key difference with our system – the DC4812VRF unit skips all of these conversions and uses the DC power directly without conversion loss.

The 48V DC Powered Solar Air Conditioner System

Battery

Batteries are the energy bank to reserve energy. We recommend you use 4 x 12V deep cycle gel solar batteries Depending on the system selected and the hours of battery operation you require, you can select the AH of your batteries.

EER

COP

SEER

HSPF

Airflow

Noise (H / M / L)

CAPACITY

POWER SUPPLY



Power Input

12,000btu - 3.5kw

12,000 - 3.5kw

42-60

970

1028

850 x 300 x 198

800 x 54 x 315

900 x 370 x 270

920 x 620 x 400

11/13

47/50

3.8

3.7

22

11

630

42/37/34

52(H)

Model - SuperEn - 12000BTU Cooling / Heating Capacity

DC4812VRFS-US

Electrical Data

Performance

V DC

W

W

Btu/h

Btu/h

Cooling

Heating

Cooling

Heating

mm

mm

mm

mm

kg

kg

Indoor unit

Outdoor unit

Indoor unit

Outdoor unit

Indoor unit

Outdoor unit

Body Dimension
(WxDxH)

Package Dimension
(WxDxH)

Net Weight/
Gross Weight

Dimension and Weight

Cooling

Heating

Cooling

Heating

Indoor unit

Indoor unit

Outdoor unit

W/W

W/W

Btu/h/W

Btu/h/W

M3/h

dBA

dBA

All 100% Off Grid 48V DC solar air conditioners are manufactured to Australian standards.

For further information or to become our distributor, contact Superen Australia at rob@superen.com.au
